STH & ST TYPE Lathe Extention Rods

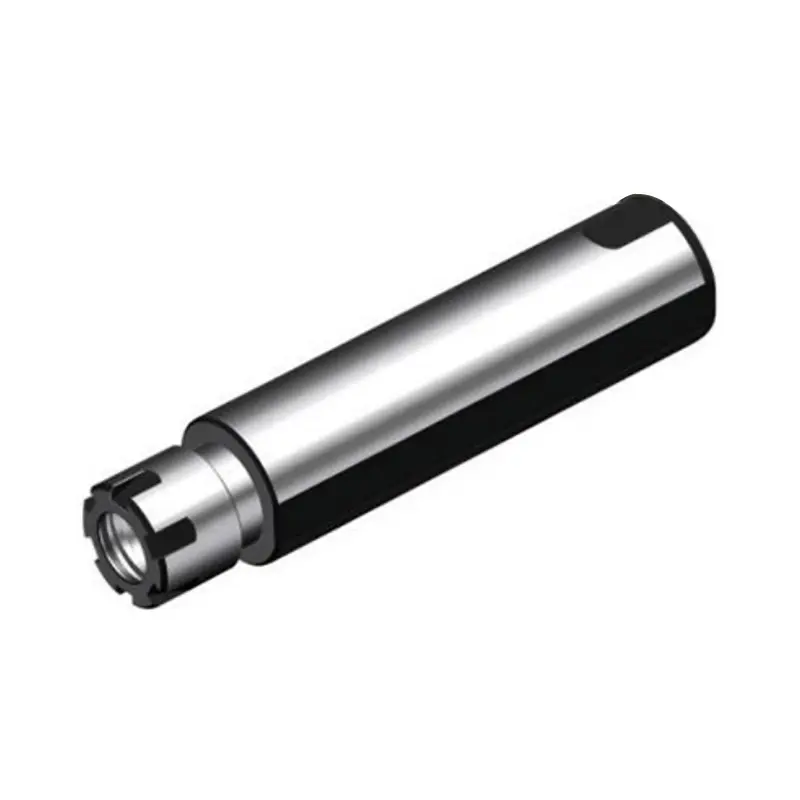

ST-Type Parameters
 |
Model No. | MORES TAPER MT/MK | D | d | L | L | Screw | Nut |
| 621001 | ST19.05-ER11-70L | 19.05 | 16 | 70 | 16 | PT8/1 | ER11-M | |
| 621002 | ST19.05-ER11-100L | 19.05 | 20 | 100 | 20 | PT4/1 | ER16-M | |
| 621003 | ST20-ER16-70L | 20 | 20 | 100 | 20 | PT4/1 | ER16-M | |
| 621004 | ST20-ER16-100L | 20 | 20 | 100 | 20 | PT4/1 | ER16-M | |
| 621005 | ST22-ER16-70L | 22 | 20 | 70 | 20 | PT4/1 | ER16-M | |
| 621006 | ST22-ER16-100L | 22 | 20 | 100 | 20 | PT4/1 | ER16-M | |
| 621007 | ST25-ER16-70L | 25 | 20 | 70 | 20 | PT4/1 | ER16-M | |
| 621008 | ST25-ER16-100L | 25 | 20 | 100 | 20 | PT4/1 | ER16-M | |
| 621009 | ST25.4-ER16-70L | 25.4 | 20 | 70 | 20 | PT4/1 | ER16-M | |
| 621010 | ST25.4-ER16-100L | 25.4 | 20 | 100 | 20 | PT4/1 | ER16-M |

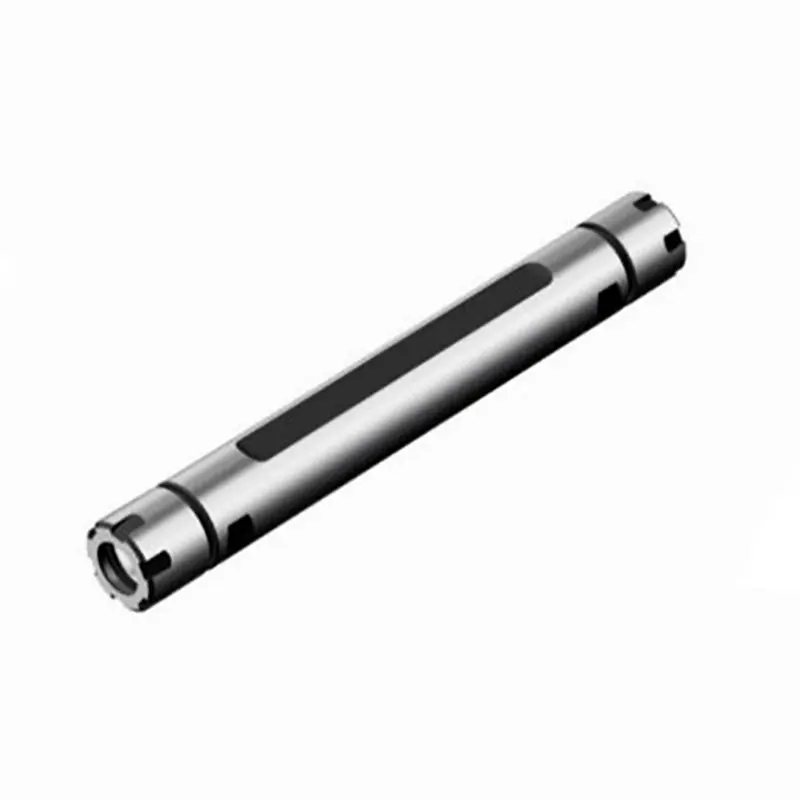

STH-Type Parameters
 |
Model No. | MORES TAPER MT/MK | D | d | L | L | Screw | Nut |
| 621011 | STH19.05-ER11-70L | 19.05 | 16 | 70 | 16 | / | ER11-M | |
| 621012 | STH19.05-ER11-100L | 19.05 | 20 | 100 | 20 | / | ER16-M | |
| 621013 | STHD20-ER16-70L | 20 | 20 | 100 | 20 | / | ER16-M | |
| 621014 | STH20-ER16-100L | 20 | 20 | 100 | 20 | / | ER16-M | |
| 621015 | STH22-ER16-70L | 22 | 20 | 70 | 20 | / | ER16-M | |
| 621016 | STH22-ER16-100L | 22 | 20 | 100 | 20 | / | ER16-M | |
| 621017 | STH25-ER16-70L | 25 | 20 | 70 | 20 | / | ER16-M | |
| 621018 | STH25-ER16-100L | 25 | 20 | 100 | 20 | / | ER16-M | |
| 621019 | STH25.4-ER16-70L | 25.4 | 20 | 70 | 20 | / | ER16-M | |
| 621020 | STH25.4-ER16-100L | 25.4 | 20 | 100 | 20 | / | ER16-M |
Precision at the Highest Level
The production engineering possibilities of BOD allow us manufacture finest quality products. Our collets & Guide Bushes are easily interchangeable. Our products are used across the globe for High Precision requirements.
Our collets & Guide Bushes are available in variety of standard sizes and shapes. It is manufactured from High quality special grade steel for high hardness , wear resistance and best functioning.
BOD ER Spindles
Range of Cylinderical ER colletshanks made from high quality special steels under controlled process.
The Shank is made to h6 standards for providing higher accuracy and tool life The Run-out is maintained within 0.005mm from shank dia to ER cavity taper. These Cylinderical shanks are supplied with clamping nuts (without ER Collet) The shanks can be provided with back-up screw - upon request.
ER Spindles are used for a vide range of tool holding application in Maching centers, Swiss type automatic lathes for drilling, milling application Wide Variety of shanks types - including Round, Round with flat in Single / Double ends offered in both metric and Inch Sizes.
