BT CPU Precision Drill Chuck Holder

CPU drill chucks feature a worm and gear structure that greatly enhances clamping force. The overall design improves rigidity and precision, with a runout accuracy of up to 0.05 mm. The jaws are treated with nitriding to increase wear resistance and extend tool life.

The worm and gear mechanism significantly increases clamping force, enhancing overall rigidity and precision.

Runout accuracy reaches 0.05 mm.

The jaws are nitrided for improved durability.

Minimum order quantity: 5 pcs (mixed models acceptable)

GET A QUOT

product details

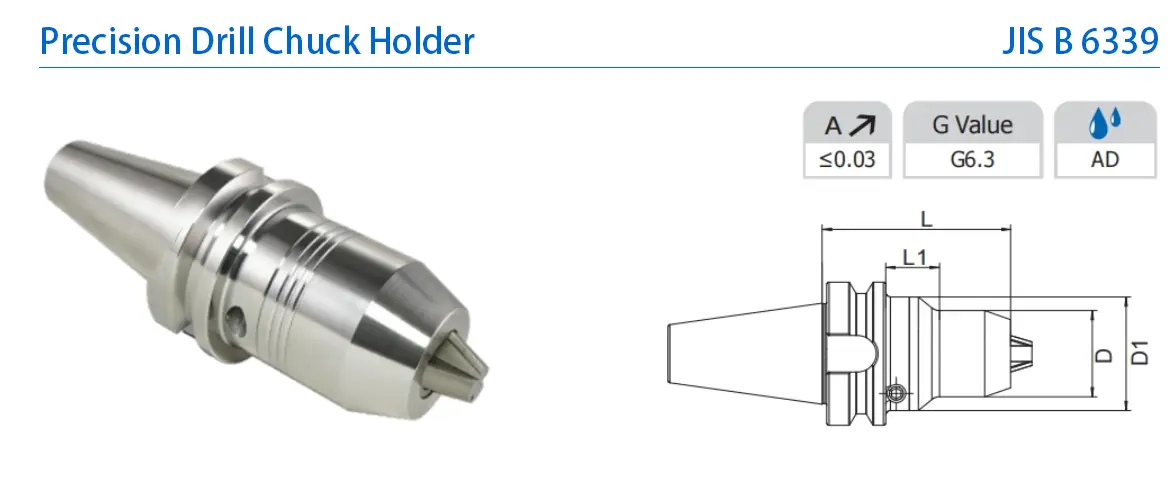

Product Parameters

Size	D	D1	L	L1	Capacity
BT30-CPU10-80	38	50	80	26	1-10
BT40-CPU10-80	38	50	80	21	1-10
BT40-CPU13-90	50	-	90	-	1-13
BT40-CPU16-90	50	-	90	-	1-16
BT50-CPU13-100	50	-	100	-	1-13
BT50-CPU16-100	50	-	100	-	1-16

BBT40-CPU10-80	38	50	80	21	1-10
BBT40-CPU13-90	50	-	90	-	1-13
BBT40-CPU16-90	50	-	90	-	1-16

BBT50-CPU13-100	50	-	100	-	1-13
BBT50-CPU16-100	50	-	100	-	1-16
