HSK CPU Precision Drill Chuck Holder

The worm and worm gear structure greatly increases clamping force, while the overall design enhances rigidity and precision. The runout is controlled within 0.05 mm. The jaws are nitrided for improved wear resistance and extended tool life.

The worm and worm gear mechanism significantly increases clamping force and overall rigidity and accuracy.
Runout ≤ 0.05 mm.
Jaws are treated with nitriding for higher wear resistance.

Minimum order quantity: 5 pcs (mixed models acceptable)

GET A QUOT

product details

Product Parameters

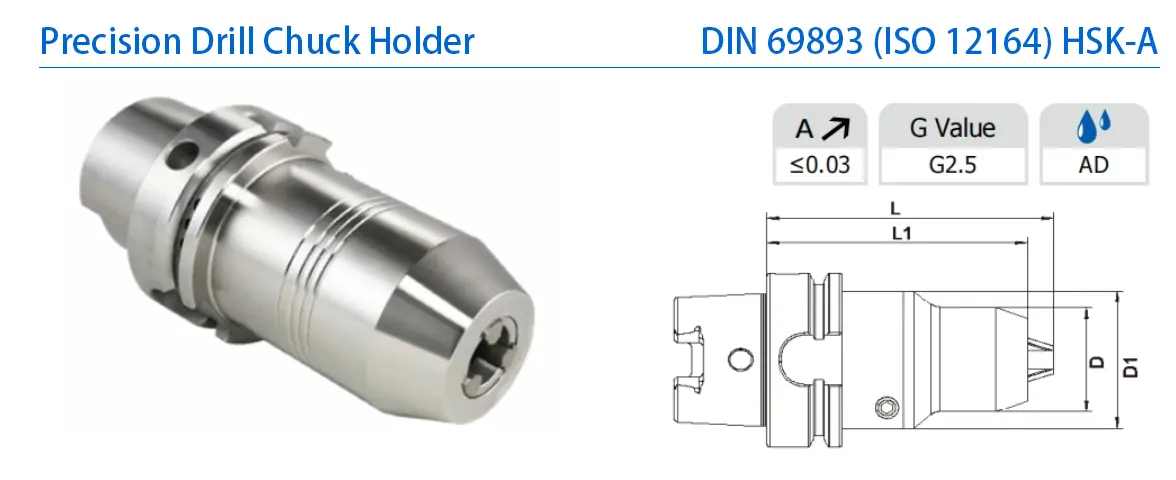

Size	D	D1	L	L1	Capacity
HSK63A-CPU10-90	38	50	90	32	1-10
HSK63A-CPU13-100	50	-	100	-	1-13
HSK63A-CPU16-100	50	-	100	-	1-16

HSK100A-CPU13-105	50	-	105	-	1-13
HSK100A-CPU16-105	50	-	105	-	1-16

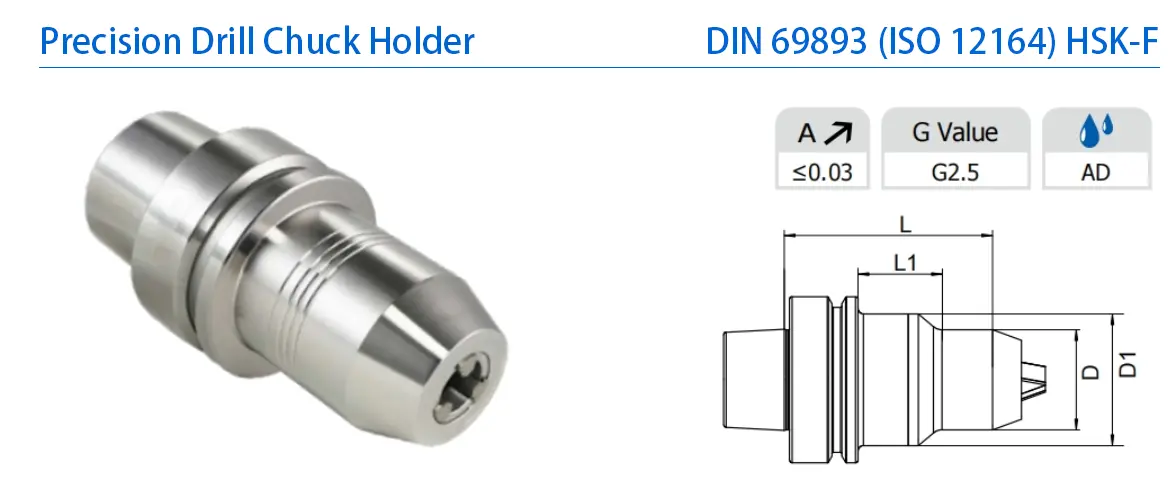

Size	MT. NO.	D	L
HSK63F-MTA1-100	1	25	100
HSK63F-MTA2-120	2	32	120
HAK63F-MTA3-140	3	40	140
HAK63F-MTA4-160	4	48	160
